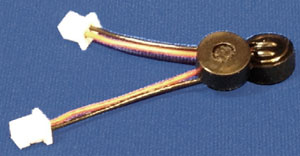

IP57 Compliant Condenser Microphone
CEM-OB60278-423G-XLZC01-AL-W
The Challenge Electronics PN CEM-OB60278-423G-XLZC01-AL-W is an omnidirectional, Back-Electret, Condenser Microphone. This connectorized microphone is RoHS and IP57 compliant
Features:
- RoHS, Lead Free
- IP57 Compliant
- Wire Termination: Molex Connector 51021-0200
- Mounting: Rubber Boot
- ISO 9001:2000
- ISO 14001:2004
- ISO/TS 16949:2002
Characteristics:
- Sensitivity: -42 dB(A)
- Freq. range: 50-10,000 Hz.
- Signal-to-Noise: 58 dB(A)
- Output Impedance: 2.2 kOhm
Please visit our Omnidirectional Microphone page for more products like this, or call us at 800-722-8197.
| Part Number | Dimensions | Sensitivity/db | Min S/N Ratio | Operating Voltage | Frequency Range | Internal Capacitors | Termination | IP57 | |||||
| Dia. mm |
High mm |
dB | ± | Min. Vdc | Nom. Vdc | Max. Vdc | Hz | pFD | Type | Long mm | |||
CEM-OB60278-423G-XLZC01-AL-W |
6.0 | 2.7 | -42 | 3 | 58 | 1.0 | 2.0 | 10 | 50-10000 | 33 + 10 | Molex Conn. | 25±3 | Y |
PR No. 112
